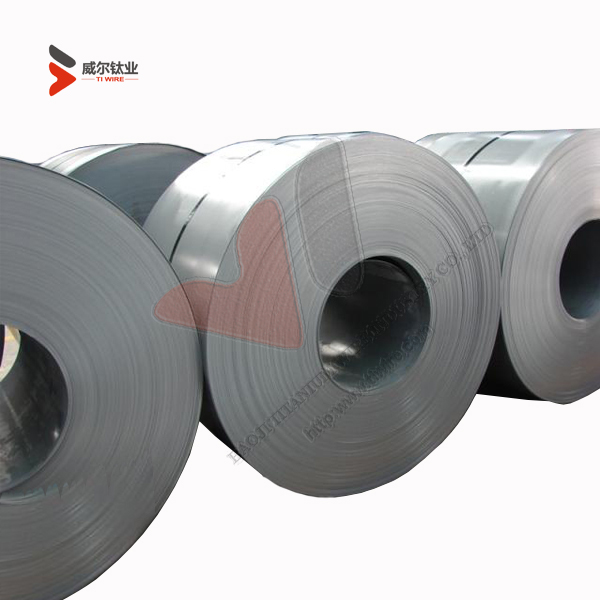

ASTM B265 Grade 2 C.P Titanium Coils

ASTM B265, Grade 2, C.P Titanium Coils, titanium sheets, titanium plates, industrial, chemical use

Grades:
    CP Ti Grades 1, 2, 3, 4,

Specifications:
     ASTM B265 / ASME SB265, ASTM F67, AMS4911

Thickness:
     From 0.012"-0.1875"
     From 0.3-4.76mm

‍Specifications of Titanium Sheet:‍

Product	Thickness (mm)	Width (mm)	Length (mm)
Titanium Sheet	0.5-0.8	800 max, Ti 6Al-4V	2000 max
Titanium Sheet	0.5-0.8	1000 max, CP Ti	2000 max
Titanium Sheet	0.8-5	1000 max	3000 max
Titanium Plate	5-8	2000 max	4000 max
Titanium Plate	8-100	2500 max	6000 max
Product	Thickness (inches)	Width (inches)	Length (inches)
Titanium Sheet	0.020"-0.032"	31.5" max, Ti-6Al-4V	78.7" max
Titanium Sheet	0.020"-0.032"	39.4" max, C.P. Ti	78.7" max
Titanium Sheet	0.032"-0.20"	39.4" max	118.1" max
Titanium Plate	0.20"-0.32"	78.7" max	157.5" max
Titanium Plate	0.32"-3.94"	78.7" max	236.2" max

ASTM B265, Grade 2, C.P Titanium Coils, titanium sheets, titanium plates, industrial, chemical use

Titanium Sheet Coil & Strip:

Baoji Titanium Wire Industry Co., Ltd. produces cold rolled and annealed, sheet, coil and strip in all titanium grades required for the construction of titanium process equipment. Material is produced to customer order requirements with a maximum width of 49.2” (1250mm) for sheet thickness ranging from 0.016” (0.41mm) up to 0.1874” (4.76mm). Industrial Titanium sheet, coil and strip are supplied in accordance with ASTM, ASME standards in Grades 1, 2, 4, 7, 11, 12, 16, 17 & 37. Additional specifications such as Norsok, DIN, PED and customer specific specifications can be quoted following a review by the quality assurance and process engineering departments.

Grade          Titanium Gr. 2
Thickness:   0.025mm-1.0mm
Width:          0.025mm-0.15mm*180mm*L
                    0.2mm-0.3mm*300mm*L
                    0.3mm-0.7mm*480mm*L
                    1.0mm-100mm*1000mm*2000mm
- Sheet / plate:   (1.0~20mm) x (300~1500mm) x 3000mm Max
- Foil :          ( 0.001-1.0mm) × (20-330mm) x coil / Length
- Strip :         ( 0.10-0.30) × (50-300) × (≥500) mm
                    (0.40-0.90) × (50-500) × (≥1000) mm
                    (1.0-2.0) × (50-500) × (≥2000) mm
Production method : Cold rolling and fully annealed condition

Mechanical Properties: Grade 2 Titanium Coils/Sheets

Tensile Strength( min.): 50 Ksi (345 MPa)

Yeild Strength, 0.2% Offset: Min. 40Ksi (275 MPa)

Max. 65Ksi (450 MPa)

Elongation in 2 in. or 50mm. min.: 20%

Bend Test:

Under 0.070"(1.8mm) in Thickness: 4T

0.070"-0.187" (1.8-4.75mm) in Thickness: 5T

Chemical Compositions:

Nitrogen, max.: 0.03%

Carbon, max.: 0.08%

Hydrogen, max.: 0.015%

Iron, max.: 0.30%

Oxygen, max.: 0.25%

Residuals,max. each: 0.1%

Residuals, max. total: 0.4%

Titanium: balance
