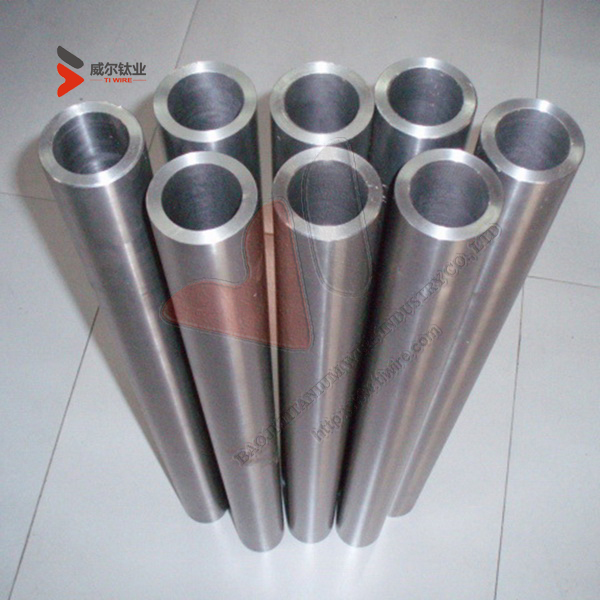

Gr. 1 Titanium Tubes of ASTM B861
Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861
Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861Gr. 1 Titanium Tubes of ASTM B861
  • Description
  • Specification

    Seamless Titanium Tubes

    ASTM Grade Nominal
        Composition
    Forms
    Cold-Reduced Hot-Rolled Hot-Extruded
    Grade 1 Ti x
    Grade 2 Ti x
    Grade 4 Ti x
    Grade 7 Ti (Gr2) 0.2 Pd
    Grade 12 Ti- 0.3Mo-0.8Ni x
    Grade 16 Ti (Gr2) 0.07 Pd x


    Specifications:
         ASTM B338 / ASME SB338, ASTM B861


    O.D. , W.T & Length Range:

    Dimensional Capabilities:
    Cold Reduced Tubing (lengths up to 708″/18000mm)
    O.D. Wall
    0.118″ – 4.5″ 3 mm – 114.3 mm 0.020″ – 0.433″ 0.5 mm – 11 mm
    Hot Rolled Tubing (lengths up to 157″/4000 mm)
    O.D. Wall
    2.756″ – 3.937″ 70 mm – 100 mm 0.354″ – 1.181″ 9 mm – 30 mm
    Hot Extruded Tubing (lengths up to 240″/6096 mm)
    O.D. Wall
    1.968″ – 6.625″ 50 mm – 168 mm 0.276″ – 1.378″ 7 mm – 35 mm


    Production Capability:
          30 Metric Tons/month

    Packing:
          Standard export plywood case

    Delivery Time:
         5-30 days

    Shipping:
         By International Express(TNT, FEDEX, DHL, UPS, etc.), By Air, By Sea


    Titanium tubes.pdf



    Seamless Titanium Pipe & Tube
    Gr.1, Gr.2, Gr.7, Gr.9, Gr.12, Seamless Titanium Tubes, Titanium Pipes, Titanium Tubes, ASTM B861, ASTM B338

            Baoji Titanium Wire Industry Co., Ltd.  produces seamless titanium tubing in accordance with ASTM/ASME standards in Grades 1, 2, 4, 7, 12 & 16  for construction of titanium process equipment. Material is produced to customer order requirements in a diameter range of 0.118” (3.0mm) to 4.50” (114.3mm) OD and wall thickness between 0.020” (0.5mm) and .433” (11mm).  Additional specifications such as Norsok, DIN, PED and other customer specific specifications can be quoted following a review by the quality assurance and process engineering departments.


    Mechanical Property:

    GradeTensile   Strength(min)Yeild   Strength(min)Elongation(%)Remark
    ksiMPaksiMPa
    Gr.  1352402013824
    Gr.  2503454027520
    Gr.  3654505538018
    Gr.  7503454027520
    Gr.  912586010572510

    cold-worked

    stress-relieved

    Gr.  9906207048315annealed
    Gr.  12704835034518


    Chemical Composition:

    GradeNCHFeOAlVPdMoNiTi
    Gr.  10.030.080.0150.200.18/////Bal
    Gr.  20.030.080.0150.300.25/////Bal
    Gr.  30.050.080.0150.300.35/////Bal
    Gr.  70.030.080.0150.300.25//0.12-0.25//Bal
    Gr.  90.030.080.0150.250.152.5-3.52.0-3.0///Bal
    Gr.  120.030.080.0150.300.25///0.2-0.40.6-0.9Bal


    Dimensions of Pipe:

    NPS
    DESIG.

    Outside

    Dia.

    Nominal Wall Thickness
    Schedule   5SSchedule 10SSchedule 40SSchedule 80S
    inmminmminmminmminmm
     1/80.40510.290.4901.240.0681.730.0952.41
     1/40.54013.720.0651.650.0882.240.1193.02
     3/80.67517.150.0651.650.0912.310.1263.20
     1/20.84021.340.0651.650.0832.110.1092.770.1473.73
     3/41.05026.670.0651.650.0832.110.1132.870.1543.91
    1   1.31533.400.0651.650.1092.770.1333.380.1794.55
    1-1/41.66042.160.0651.650.1092.770.1403.560.1914.85
    1-1/21.90048.260.0651.650.1092.770.1453.680.2005.08
    2   2.37560.320.0651.650.1092.770.1543.910.2185.54
    2-1/22.87573.020.0832.110.1203.050.2035.160.2767.01
    3   3.50088.900.0832.110.1203.050.2165.490.3007.62
    3-1/24.000101.600.0832.110.1203.050.2265.740.3188.08
    4   4.500114.300.0832.110.1203.050.2376.020.3378.56
